Pot Magnet with ring-pull

Home / Products / Neodymium Pot Magnet / Pot Magnet with ring-pull
  • Pot Magnet with ring-pull

Neodymium Pot Magnet

  • Pot Magnet with ring-pull

Pot Magnet with ring-pull

Pot Magnet with Ring-Pull is a uniquely designed and powerful magnet product. It combines the basic form of a pot magnet with the convenience of a ring pull, making it work well in a variety of application scenarios. Whether it is used for fixing, hanging or as an accessory to other equipment, this magnet can provide a stable and reliable solution.

Shape and Size:

Pot Magnet with Ring-Pull is in the shape of a pot, and the overall shape is a rounded sphere with a slightly flat bottom, which is convenient for placement and fixing. The size of the magnet is moderate, not too large to be inconvenient to carry, nor too small to fix heavy objects.

Color and Gloss:

The surface of the magnet has a silver or gray-black metallic luster, which looks high-end and durable.

Ring Pull:

One or more ring pulls are set on the top of the magnet to facilitate users to grab, move or hang the magnet. The design of the ring pull is both beautiful and practical, allowing users to easily manipulate the magnet when using it.

Detailed Processing:

The edges and surfaces of the magnet are finely processed to present a smooth and round texture. The connection between the ring handle and the magnet body has also been reinforced to ensure that it will not fall off or be damaged during use.

Strong magnetic force:

This magnet is made of high-performance magnetic materials and has strong magnetic force.

It can easily attract and fix various metal objects, such as iron, nickel, cobalt, etc.

Good stability:

The magnet can maintain stable magnetic properties during use and is not easily disturbed by the external environment.

Even after long-term use, the magnetic force of the magnet can still be maintained at a high level.

Easy to carry and install:

The magnet is moderate in size and round in shape, which is convenient for users to carry and install. The design of the ring handle allows users to easily hang the magnet where they need it or move it to other locations.

Inquiry

sales@tujinmagnet.com

Product Description:

Products show





Surface Coating & Corrosoin Resistance



Nickel(Ni-Cu-Ni) Zinc(Zn) Black Epoxy Gold



Type Color Plating Thickness Working
Temperature		 Advantage & Suitable Salt Spray Resistance
Nickel(NiCuNi) silver 20-30 um ≤200 high oxidation resistance, good glossiness, stable performance, long service life > 72 hrs
Zinc (Zn) blue white 10-20 um ≤160 suitable for low requirements for surface appearance & oxidation resistance > 48 hrs
Epoxy black 10-30 um ≤120 suitable for high anti-corrosion and strict atmospheric environment  > 96 hrs
Gold Gold 5-30 um ≤200 suitable for decoration accessories, gift box etc.  > 24 hrs



Tolerance





Standard Product D.OD ID L W H
<5mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<10mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<20mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<50mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<100mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm
>100mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm



Magnetization Direction



Disc&Cylinder-through Thickness Disc&Cylinder-through Diameter Spheres- through Diameter

Poles on the flat surfaces



Poles on the side surfaces
Block- through Thickness Block- through Length Arc- through Diamter

Poles on the larger flat surfaces

Poles on the smaller flat surfaces

Poles on outside&inside faces
Arc- through Length Ring- through Surfaces Ring- through Surfaces

Poles on outside&inside faces

Planar octupole magnetization

Planar quadrupole magnetization



Sintered NdFeB Magnetic Properties



Grade Remanence Coercive Force Intrinsic Coercivity Maximum Energy Working≤
Br(KG) Br(T) Hcb
(KOe)		   Hcb
(KA/m)		 Hcj
(KOe)		   Hcj
(KA/m)		 (BH)max(MGOe) (BH)max
(KJ/ m)		 ℃
Max Min Max Min
N35 ≥11.8 ≥1.18 ≥10.8 ≥860 ≥12 ≥960 37 33 295 263 N ≤80
N38 ≥12.3 ≥1.23 ≥10.8 ≥860 ≥12 ≥960 39 36 310 287
N40 ≥12.7 ≥1.27 ≥11.0 ≥876 ≥12 ≥960 41 38 327 302
N42 ≥13.0 ≥1.30 ≥11.0 ≥876 ≥12 ≥960 43 40 343 320
N45 ≥13.3 ≥1.33 ≥11.0 ≥876 ≥12 ≥960 46 42 366 335
N48 ≥13.7 ≥1.37 ≥10.5 ≥836 ≥12 ≥960 49 45 390 358
N50 ≥14.0 ≥1.40 ≥10.5 ≥836 ≥12 ≥960 51 47 406 374
N52 ≥14.2 ≥1.42 ≥10.5 ≥836 ≥12 ≥960 53 49 422 390
N54 ≥14.4 ≥1.44 ≥10.5 ≥836 ≥11 ≥876 55 51 438 406
N35M ≥11.8 ≥1.18 ≥10.8 ≥860 ≥14 ≥1114 37 33 295 263 M ≤100
N38M ≥12.3 ≥1.23 ≥11.0 ≥876 ≥14 ≥1114 39 36 310 287
N40M ≥12.7 ≥1.27 ≥11.5 ≥915 ≥14 ≥1114 41 38 327 302
N42M ≥13.0 ≥1.30 ≥11.8 ≥939 ≥14 ≥1114 43 40 343 320
N45M ≥13.3 ≥1.33 ≥12.0 ≥956 ≥14 ≥1114 46 42 366 335
N48M ≥13.7 ≥1.37 ≥12.2 ≥972 ≥14 ≥1114 49 45 390 358
N50M ≥14.0 ≥1.40 ≥12.5 ≥995 ≥14 ≥1114 51 47 406 374
N52M ≥14.2 ≥1.42 ≥12.5 ≥995 ≥14 ≥1114 53 49 422 390
N33H ≥11.4 ≥1.14 ≥10.6 ≥844 ≥17 ≥1350 35 31 279 247 H ≤120
N35H ≥11.8 ≥1.18 ≥10.8 ≥860 ≥17 ≥1350 37 33 295 263
N38H ≥12.3 ≥1.23 ≥11.0 ≥876 ≥17 ≥1350 39 36 310 287
N40H ≥12.7 ≥1.27 ≥11.5 ≥916 ≥17 ≥1350 41 38 327 302
N42H ≥13.0 ≥1.30 ≥11.8 ≥940 ≥17 ≥1350 43 40 343 320
N45H ≥13.3 ≥1.33 ≥12.0 ≥955 ≥17 ≥1350 46 42 366 335
N48H ≥13.6 ≥1.36 ≥12.2 ≥971 ≥17 ≥1350 49 45 390 358
N50H ≥14 ≥1.4 ≥12.5 ≥995 ≥17 ≥1350 51 47 406 374
N52H ≥14.3 ≥1.43 ≥12.5 ≥995 ≥17 ≥1350 53 49 422 390
N33SH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥20 ≥1592 35 31 279 247 SH ≤150
N35SH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥20 ≥1592 37 33 295 263
N38SH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥20 ≥1592 39 36 310 287
N40SH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥20 ≥1592 41 38 327 302
N42SH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥20 ≥1592 43 40 343 320
N45SH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥20 ≥1592 46 42 366 335
N48SH ≥13.6 ≥1.36 ≥12.2 ≥971 ≥20 ≥1592 49 45 390 358
N50SH ≥14 ≥1.4 ≥12.5 ≥995 ≥20 ≥1592 51 47 406 374
N33UH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥25 ≥1990 35 31 279 247 UH ≤180
N35UH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥25 ≥1990 37 33 295 263
N38UH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥25 ≥1990 39 36 310 287
N40UH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥25 ≥1990 41 38 327 302
N42UH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥25 ≥1990 43 40 343 320
N45UH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥25 ≥1990 46 42 366 335
N48UH ≥13.6 ≥1.36 ≥12.2 ≥971 ≥25 ≥1990 49 45 390 358
N28EH ≥10.4 ≥1.04 ≥9.50 ≥756 ≥30 ≥2388 30 26 239 207 EH ≤200
N30EH ≥10.8 ≥1.08 ≥9.50 ≥756 ≥30 ≥2388 32 28 255 223
N33EH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥30 ≥2388 35 31 279 247
N35EH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥30 ≥2388 37 33 295 263
N38EH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥30 ≥2388 39 36 310 287
N40EH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥30 ≥2388 41 38 327 302
N42EH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥30 ≥2388 43 41 343 320
N45EH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥30 ≥2388 46 42 366 335
N30TH ≥10.8 ≥1.08 ≥9.50 ≥756 ≥35 ≥2786 32 28 255 223 TH ≤220
N33TH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥35 ≥2786 35 31 279 247
N35TH ≥11.8 ≥1.18 ≥11.0 ≥876 ≥35 ≥2786 37 33 295 263
N38TH ≥12.2 ≥1.22 ≥11.0 ≥876 ≥33 ≥2627 39 36 310 287
Remarks： The maximum working temperature depends on the shape, size, and coating of the magnet, the highest working temperature in the table is the test data for standard sample.

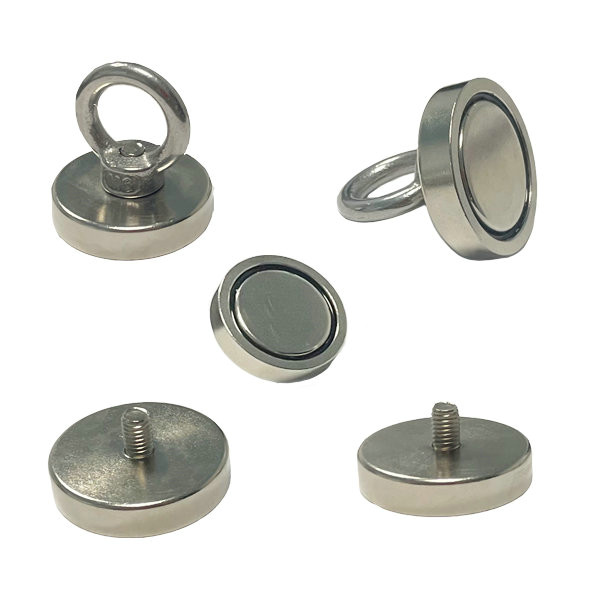

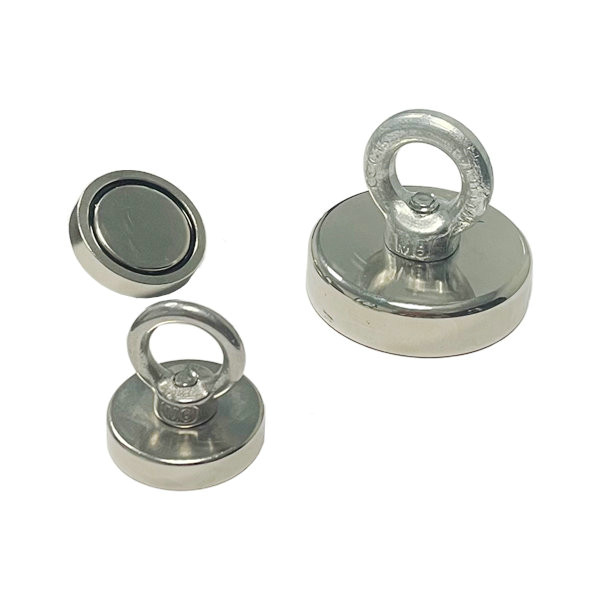

Pot Magnet with ring-pull

 Pot Magnet with ring-pull

Ø36mm Pot Magnet Neodymium N52 to hold extinguisher

 Ø36mm Pot Magnet Neodymium N52 to hold extinguisher

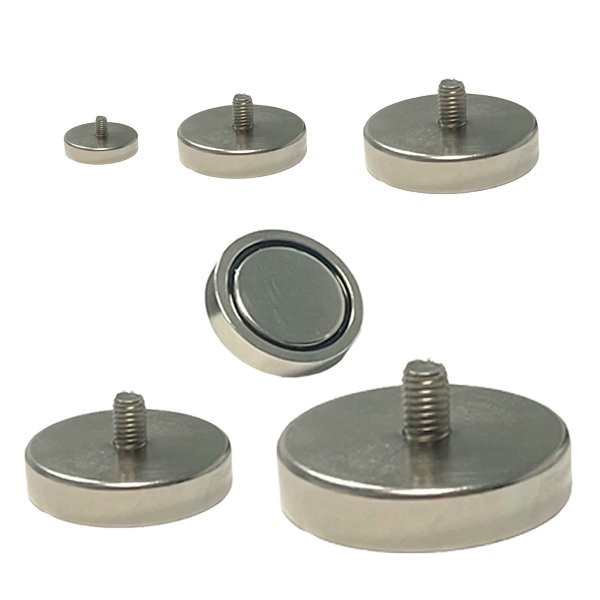

Pot Magnet for mounting

 Pot Magnet for mounting

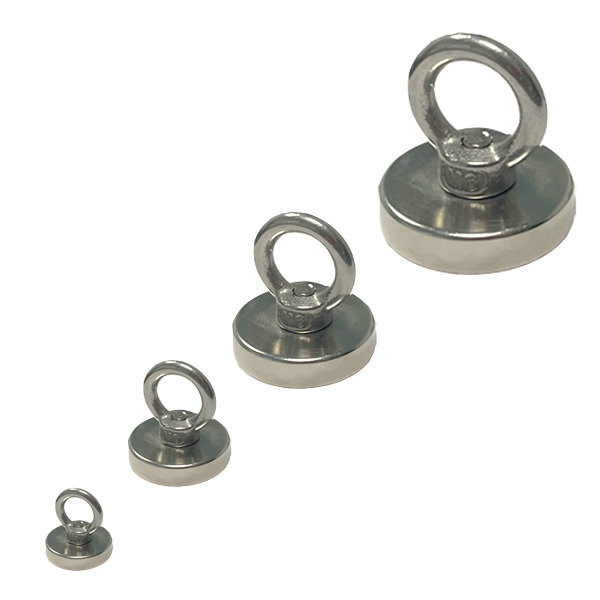

Multi-sizes pot magnets with ring-pull

 Multi-sizes pot magnets with ring-pull
